Circles

Things that you should now about Geometry

| | | | |

Circles

Here are few terms and theroms on circles

Radius- is half the diameter

Diameter- is a line that goes through the circle from one end to another

Circumfrence- Is the area of the circle

Tangent- is a line that touches the circle ONLY at one point

Point of Tangency- Is the point where the tanget touches

Secant- A secant is a straight line cutting at two distinct point

Enter second column content here

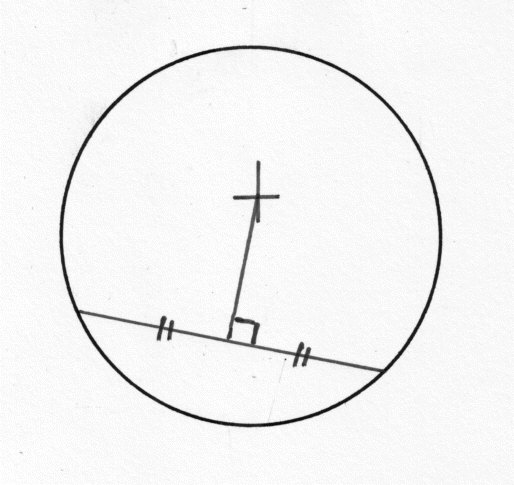

A straight line drawn from the centre of a Circle to bisect a chord which is not a diameter, is at right angles to the Chord. (theorem a)

$13108/img_pg1.jpg$

$+$

There is only one circle which passes through three given points which are not in a straight line. (theorem b)

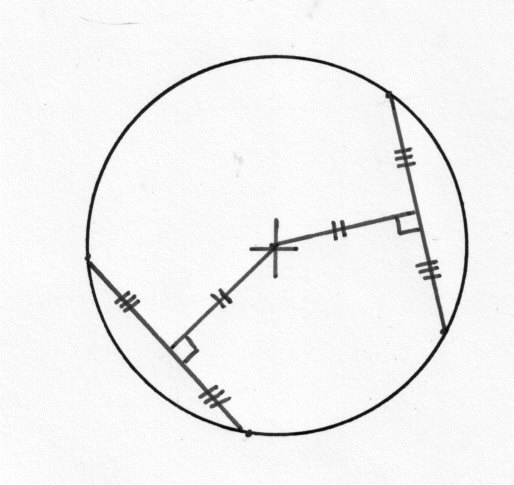

Equal chords of a circle are equidistant from the centre and visa versa. (theorem c)

$13108/img_pg2.jpg$

$+$

The tangent to a circle and the radius through the point of contact are perpendicular to each other. (theorem d)

$13108/img_pg3.jpg$

$+$

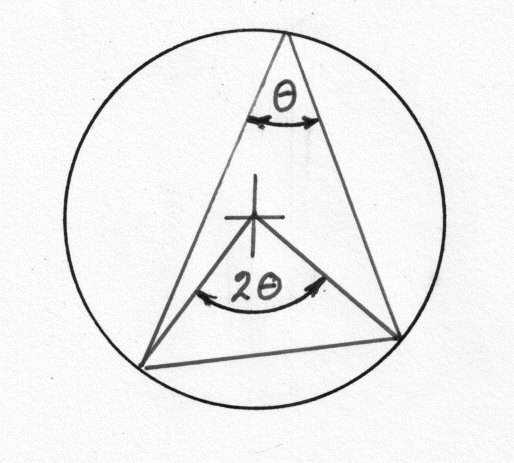

The Angle which an arc of a circle subtends at the centre is double that which it subtends at any point on the remaining part of the circumference. (theorem e)

$13108/img_pg4.jpg$

$+$

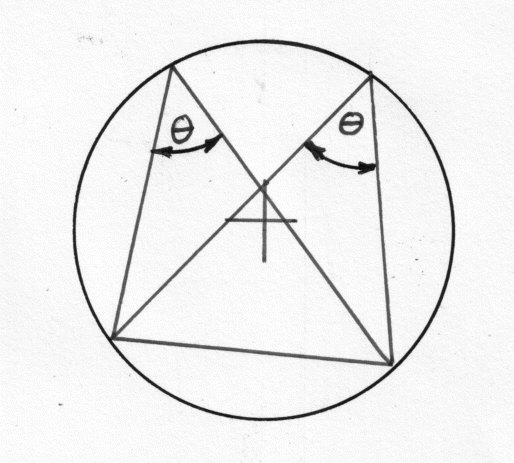

Angles in the same segment of a circle are equal (theorem f)

$13108/img_pg5.jpg$

$+$

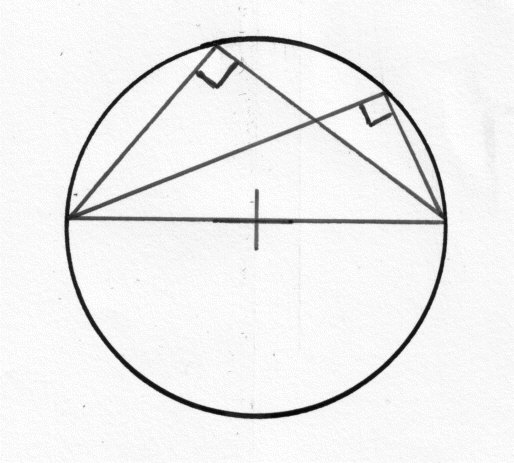

The angle in a semicircle is a right angle. (theorem g)

$13108/img_pg5_0001.jpg$

$+$

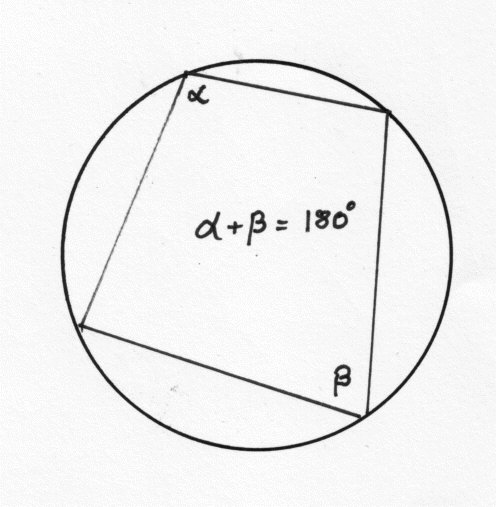

The opposite angles of any quadrilateral inscribed in a circle are Supplementary. (theorem h)

$13108/img_gm_10.jpg$

$+$

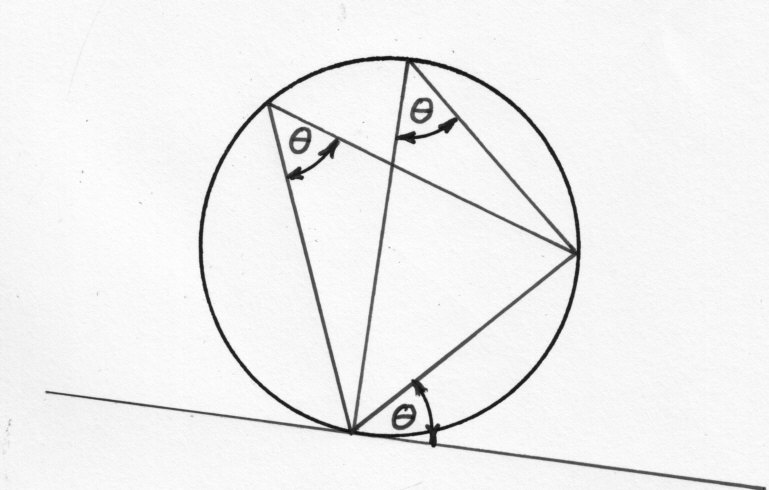

If a straight line touches a circle and from the point of contact a chord is drawn, the angles which this tangent makes with the chord are equal to the angles in the alternate segment. (theorem i)

$13108/img_pg7.jpg$

$+$
